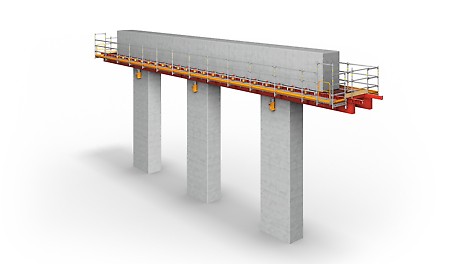

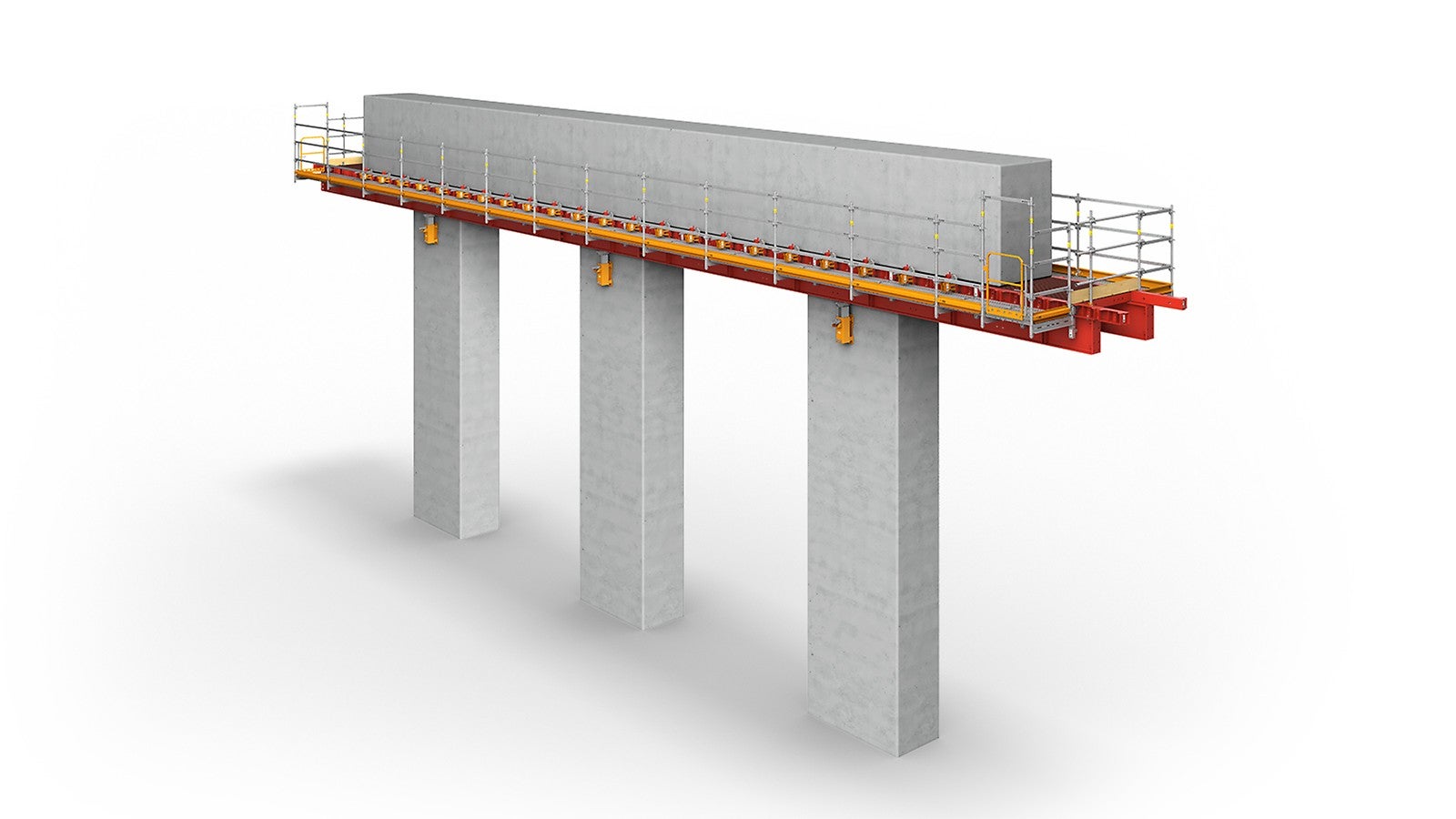

The VARIOKIT Speed Stage (VSS) eliminates shoring from below and allows shortest assembly and cycle times with a minimum number of formwork sets.

VARIOKIT Pier System VPS

VARIOKIT Pier System (VPS) is a high-performance system that combines the advantages of self-spanning formwork and the traditional dancefloor formwork.

VPS consists of two possible configurations: VARIOKIT Speed Stage (VSS) for the construction of bridge pier caps without shoring from below and VARIOKIT Speed Column (VSC) for the efficient production of bridge piers as well as large columns.

Because the system is based on the VARIOKIT engineering construction kit, almost all project requirements can be met with rentable solutions.


VARIOKIT Pier System VPS Configurations

  • VSC Configuration

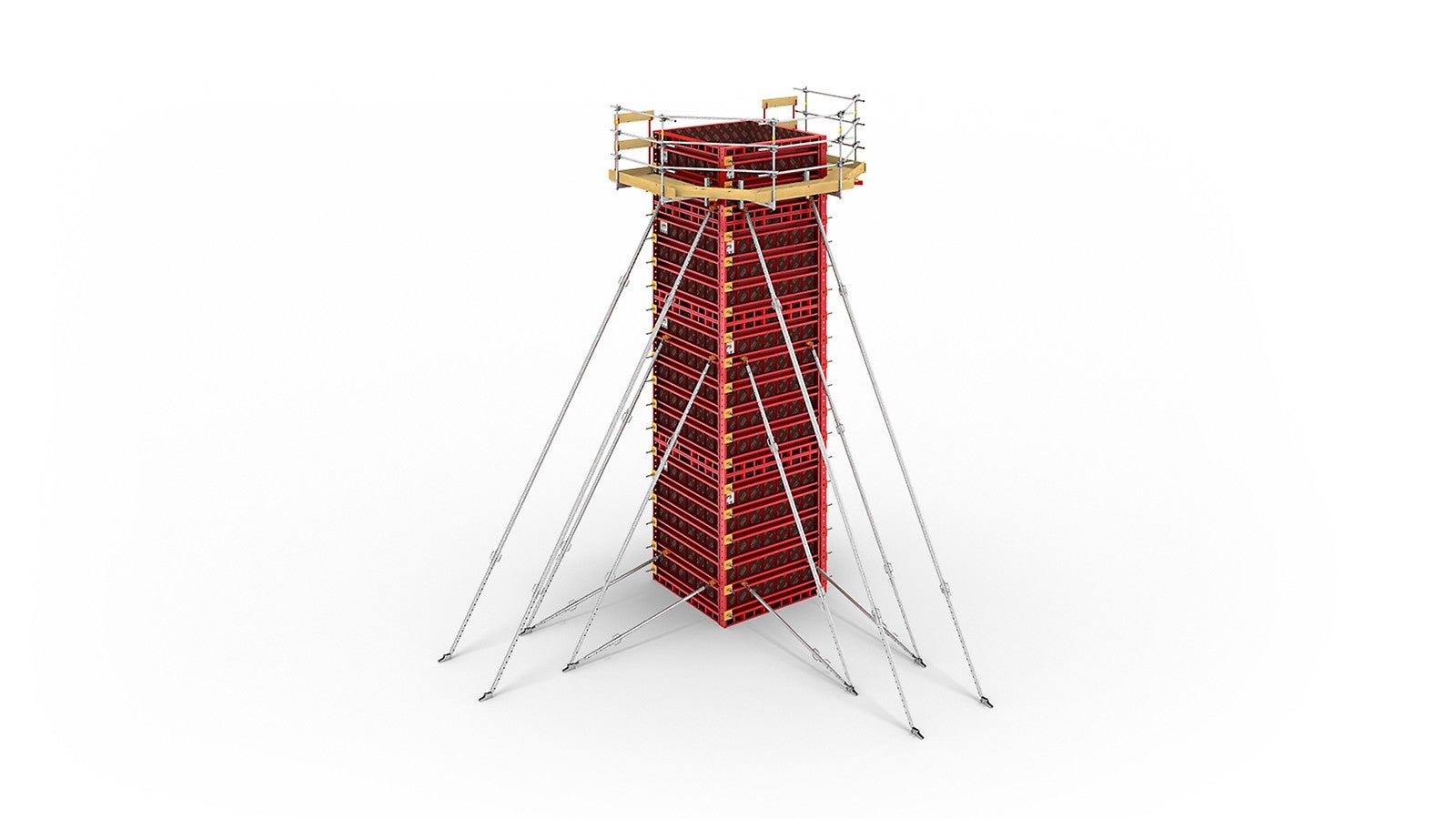

The Speed Column Configuration can be used for the construction of columns and bridge piers.
    VSC Configuration

    The Speed Column Configuration can be used for the construction of columns and bridge piers.

  • VSS Configuration

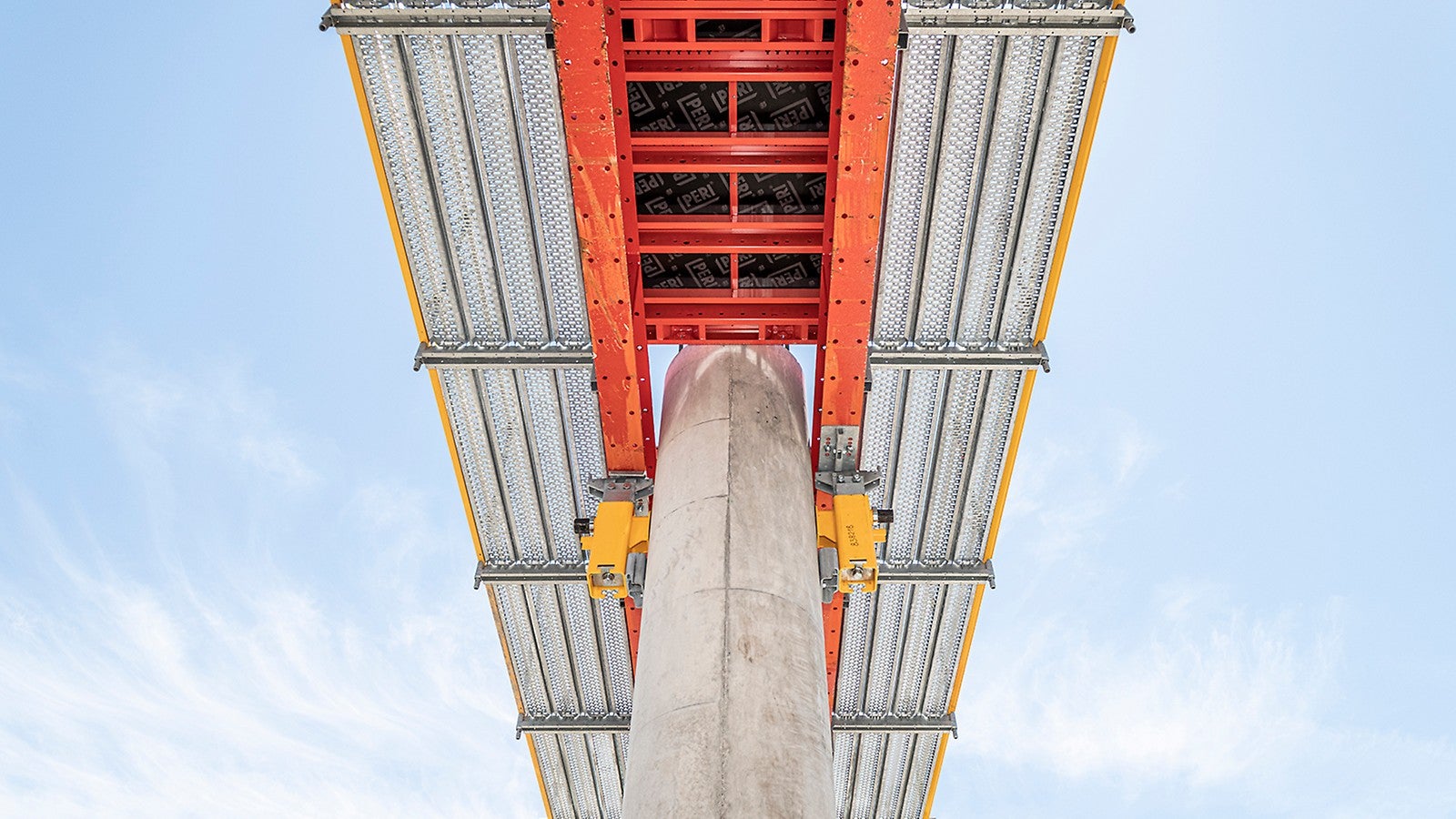

The Speed Stage configuration is used for the construction of bridgeheads. The number of components is kept small and the split-soffit technology makes the system ideal for fast work.
    VSS Configuration

    The Speed Stage configuration is used for the construction of bridgeheads. The number of components is kept small and the split-soffit technology makes the system ideal for fast work.

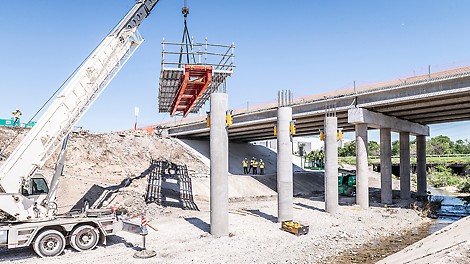

  • Safety from the very first step
The safety is already built in before lifting and thus before the first access.

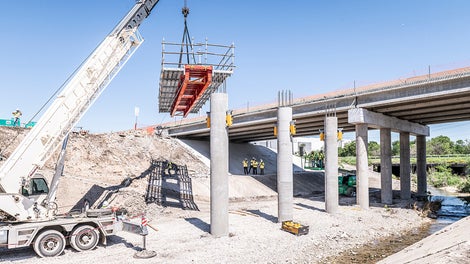

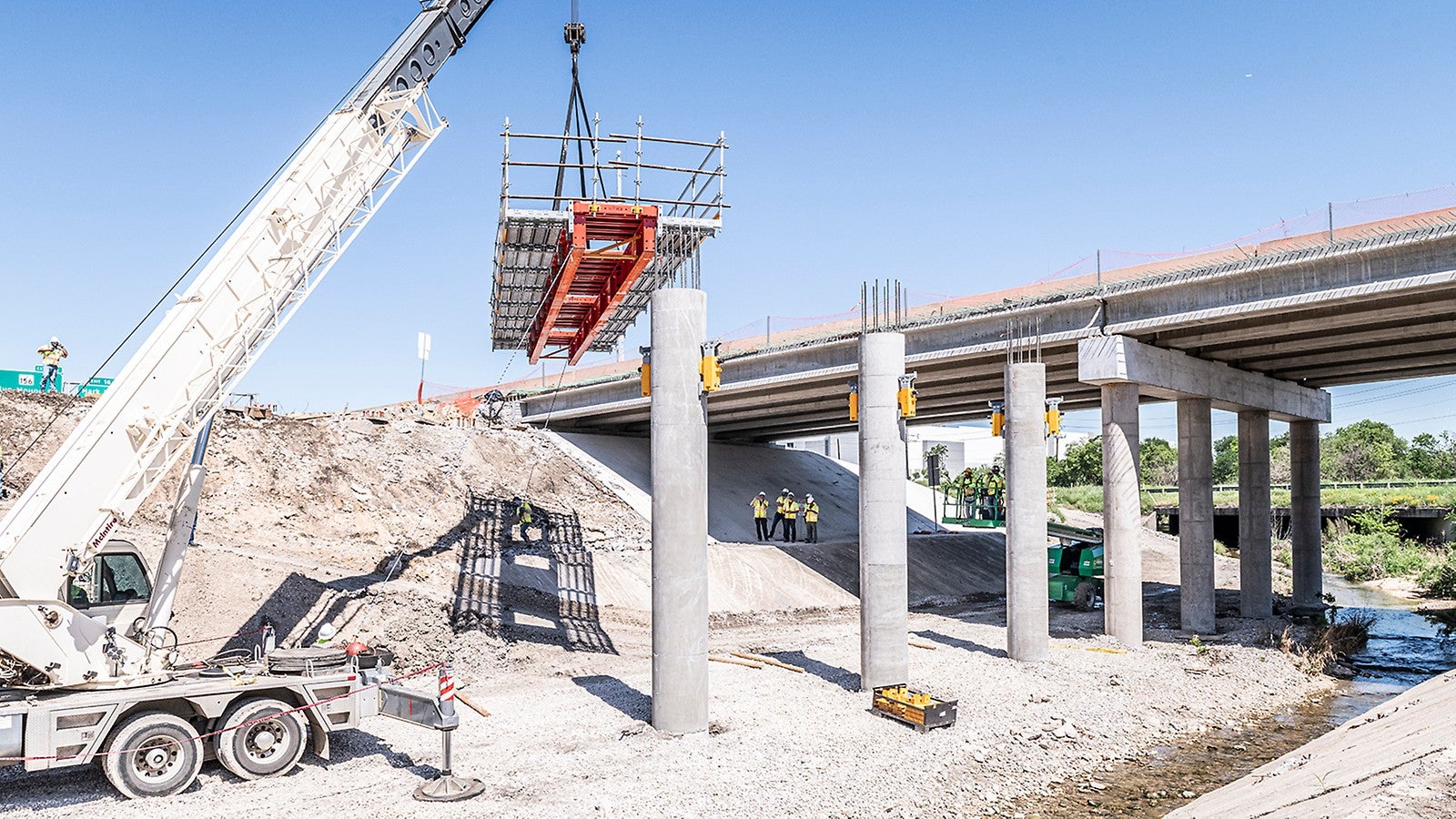

    Safety from the very first step

    The safety is already built in before lifting and thus before the first access.

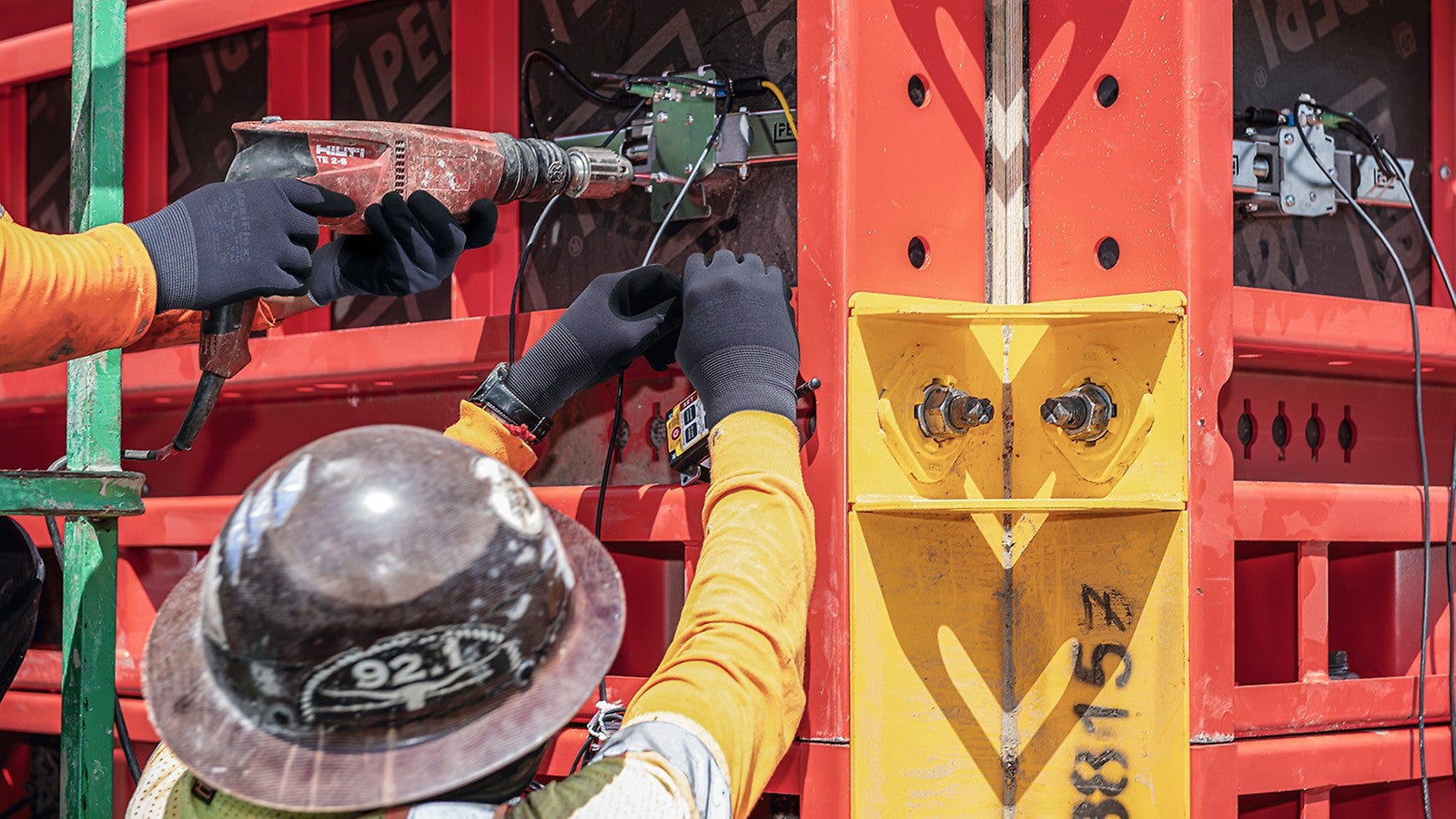

  • PERI ISC Pressure Sensor in combination with VSC
When combined with PERI InSite Construction Sensors - such as the pressure sensor - the concreting process can be further optimised. (will be available soon)
    PERI ISC Pressure Sensor in combination with VSC

    When combined with PERI InSite Construction Sensors - such as the pressure sensor - the concreting process can be further optimised.

  • High Quality Concrete Finish
VPS Panels are able to produce high-quality concrete surfaces.
    High Quality Concrete Finish

    VPS Panels are able to produce high-quality concrete surfaces.

Interested in using VARIOKIT VPS for your project?

Call us on +1 905 - 951 -5400 to discuss your requirements further.
