PERI Tie Technology in action
-
![PERI Tie Technology: For all wall formwork - here: DK sealing cone system]( "PERI Tie Technology - DK sealing cone system")
Guaranteed leak-proofWaterproof and gas impermeable, fire-resistant, soundproof and diffusion-proof as well as approved for drinking water.
-

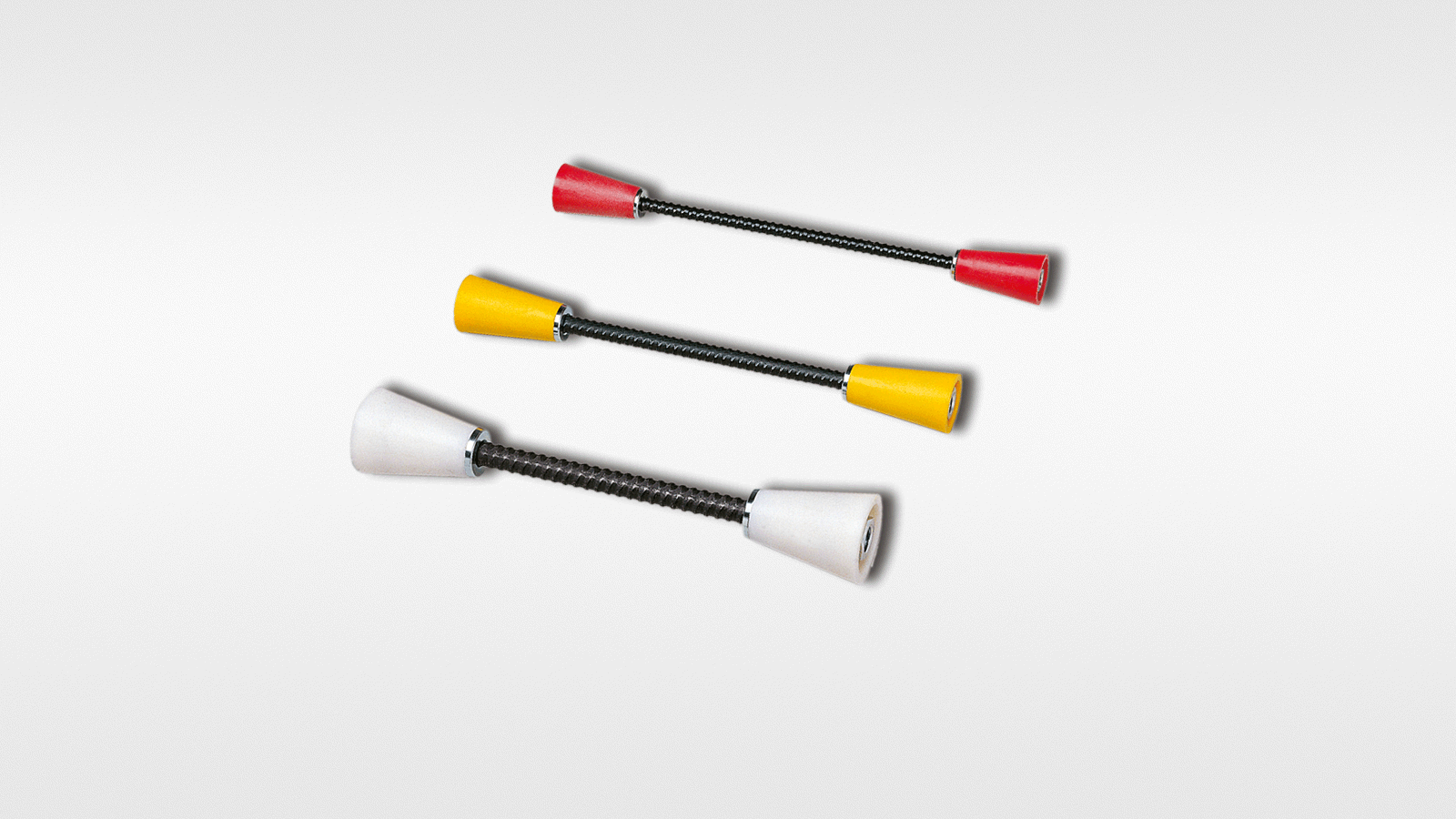

![PERI Tie Technology: For all wall formwork - here: The SK tie cone system]( "PERI Tie Technology - SK tie cone system")
Appropriate availabilityCones and spacer tubes for a range of tie diameters are available.
Product Data Sheet
Material
Concrete cones and sealing adhesive
Compatible with
MAXIMO frame formwork, VARIO GT 24 column formwork, Rundlfex
Variant DK
System type
DK anchor technology
Dimensions
Dimensions: 61.5 mm diameter for all variants (measured at the widest diameter point),,
Height: 35 mm to 55 cm (depending on DK sealing cone)
Anti-corrosion and surface coating
Waterproof concrete, noise and fire protection walls for wall thicknesses up to 60 cm
Preparation
Magnetic cone for MAXIMO, or two reusable DK sealing cones with a sleeve and a reusable tie rod
Load
Rigidity: Hardness: 100 N/mm² on average
Other
Impermeable to water, impermeable to gas, fire-resistant, soundproof
Other
Suitable for exposed concrete
Variant SK
Dimensions
Dimensions: 61 mm to 105 mm in diameter (measured at the widest diameter point),
Height: 105 mm to 138 mm (depending on SK sealing cone)
Material
Concrete cones and sealing adhesive
Anti-corrosion and surface coating
Waterproof concrete, sound and fire resistant F90 for wall thicknesses up to 60 cm, impermeable to gas
Load
Tensile and compressive force: 90 - 250 kN
Other
Reusable SK cones connected to duct and reusable tie rod or a concreted tie rod
Other
Suitable for security wings and fair-faced concrete
